Graphic industry: Grafica Veneta

Customized absorption chiller groups

Trebaseleghe (PD) - ITALIA

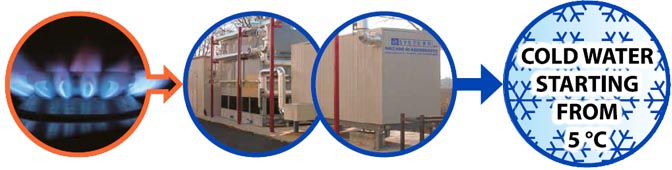

GENERATE COOLING IN HEAT PUMP USING GAS

Click heare to see application type

Graphic industry: Grafica Veneta with 110.000 mm2 of roofed buildings

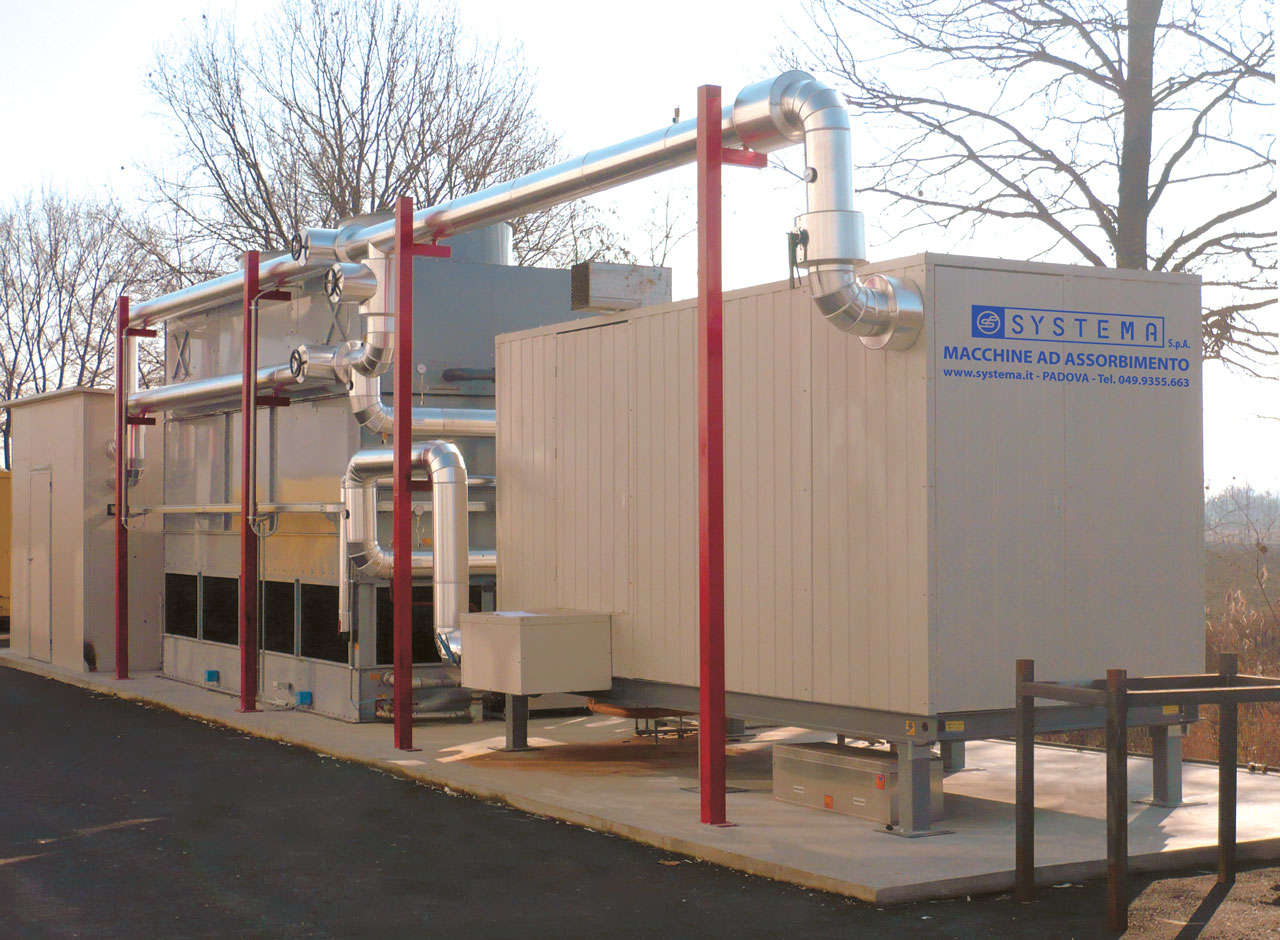

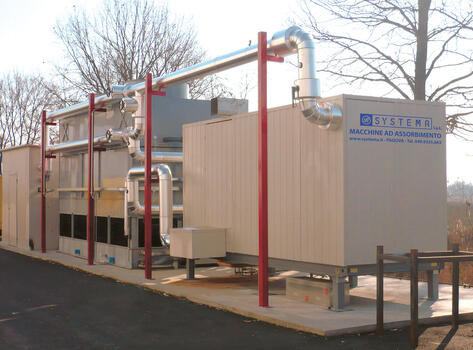

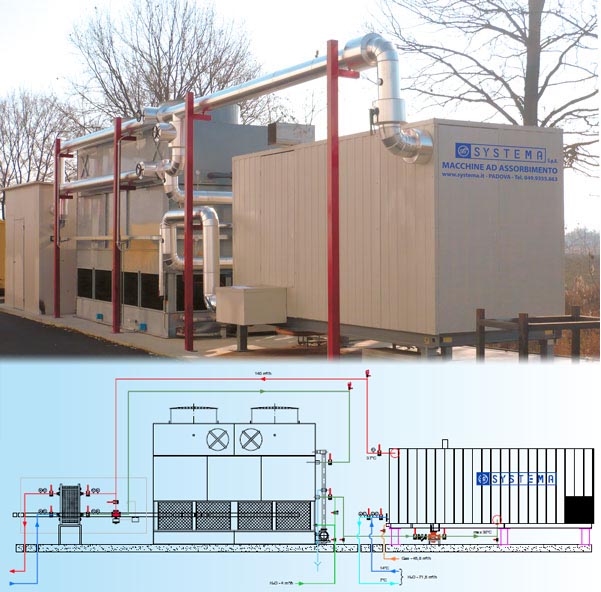

Lithium bromide absorption chiller in PACKAGE version supplied with gas

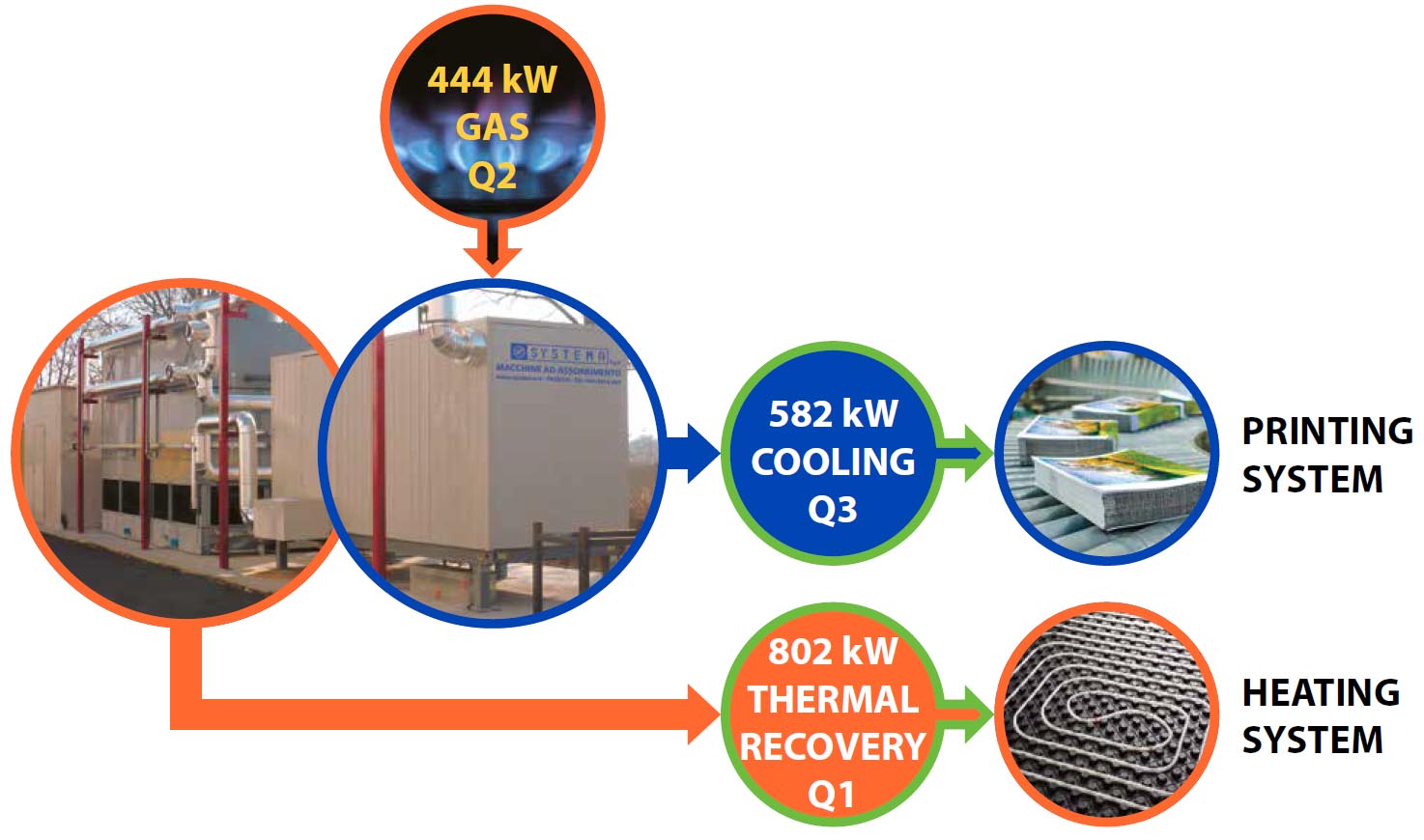

Cooling capacity: 582 kW
Thermal power: 984 kW

The Package was designed, assembled and test inspected at the factory, supplied with all functional components for simultaneous use in the process cycle (cooling) and in the floor heating system, appropriately insulated with sandwich panels for outdoor installation.

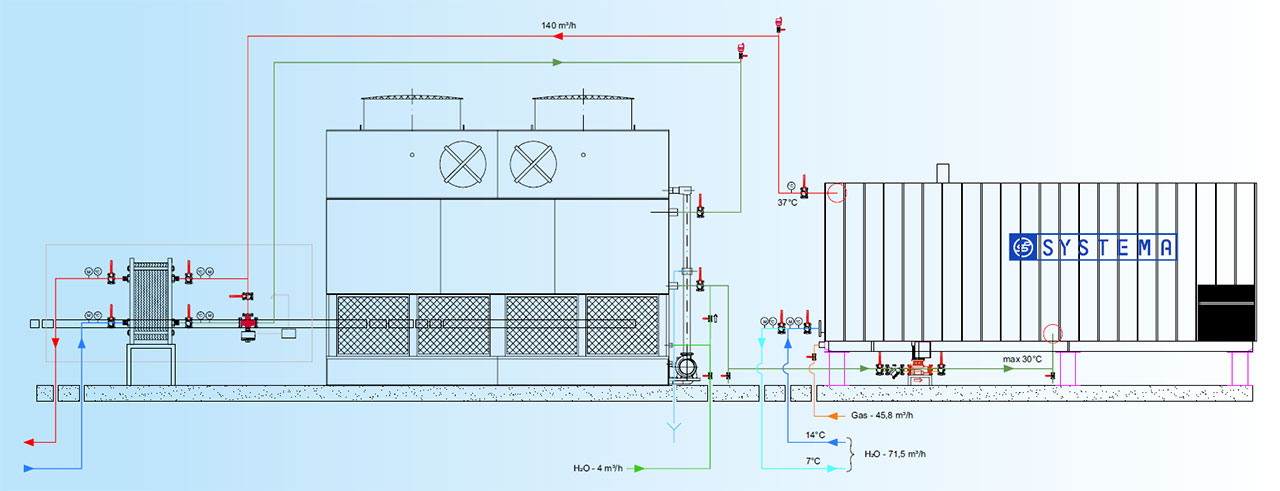

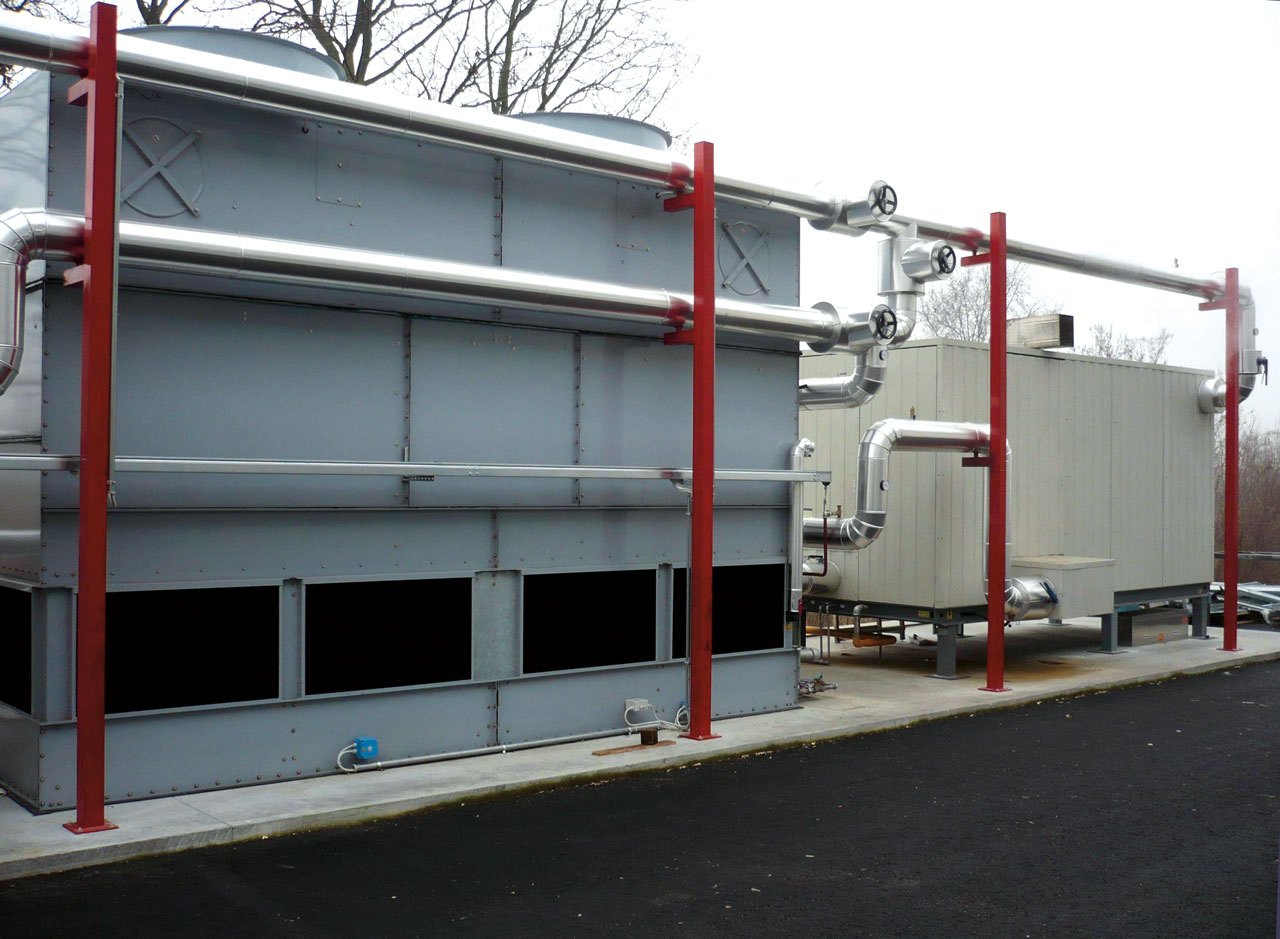

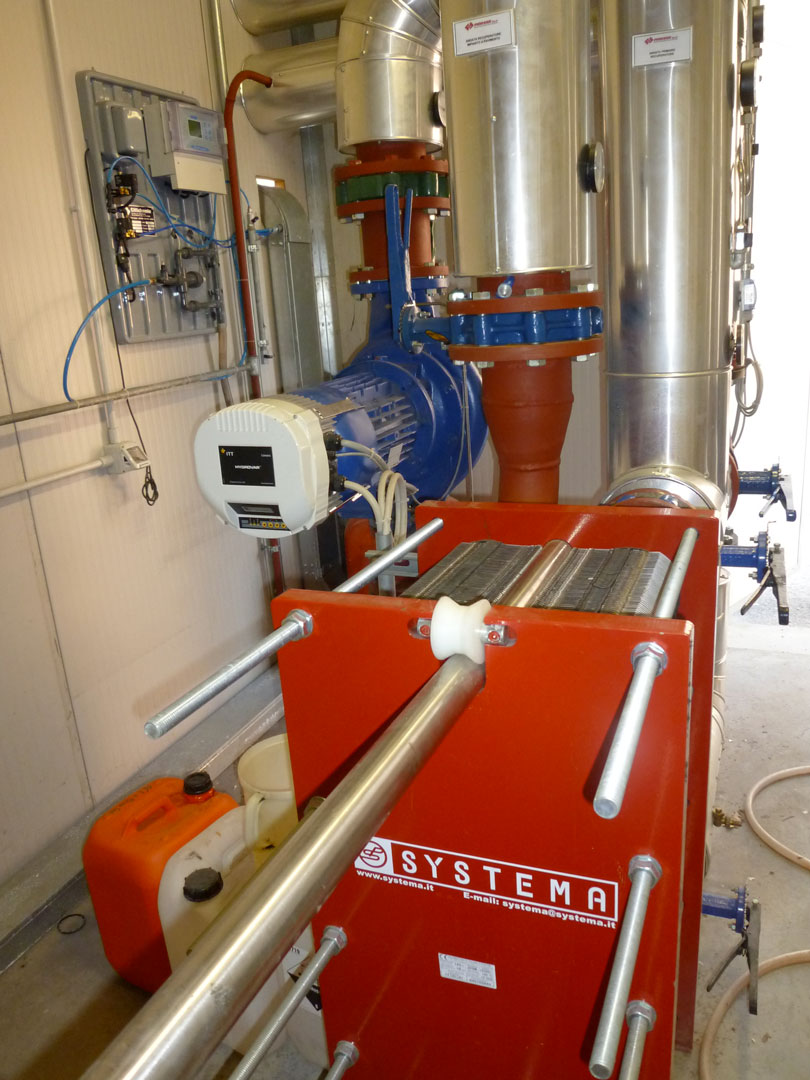

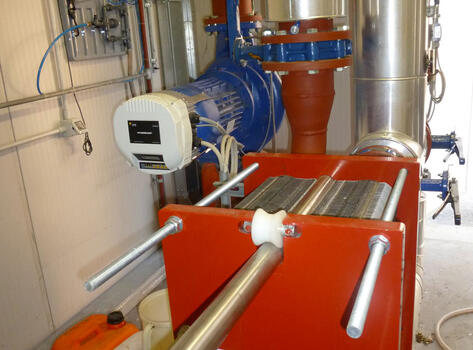

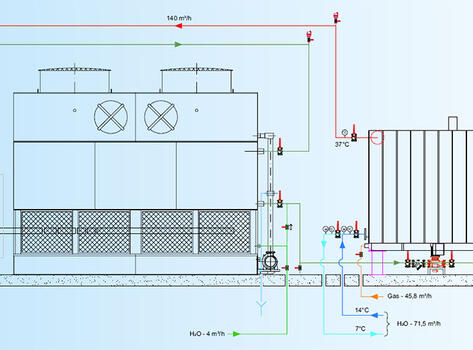

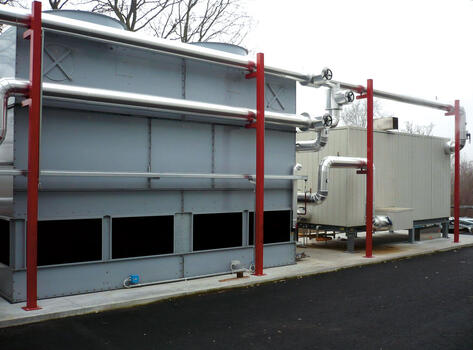

The absorption system designed based on the customer’s requirements for outdoor installation has been supplied complete with system pumps and cooling tower, three way valve, water softener, filters, control board with PLC and inverter, remote management, etc. to be suitably incorporated into the existing hydraulic and electrical system.

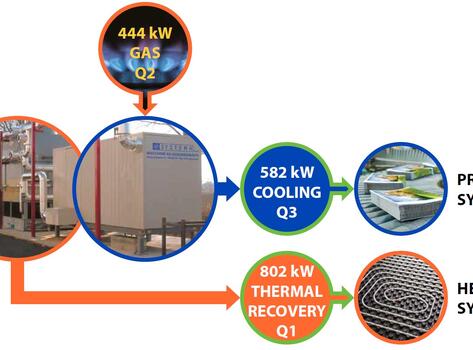

Together with the designer it has been determined to use the absorption system configured with a heat pump to cool the rotary machines and for floor heating, or with the possibility of using Airjet LT low temperature fans.

Customised solutions

Customised solutions for your company and your home

Ask for a Quote

Products installed for this system:
